Brake System |
| You can't cut corners on the brake system | |||
|

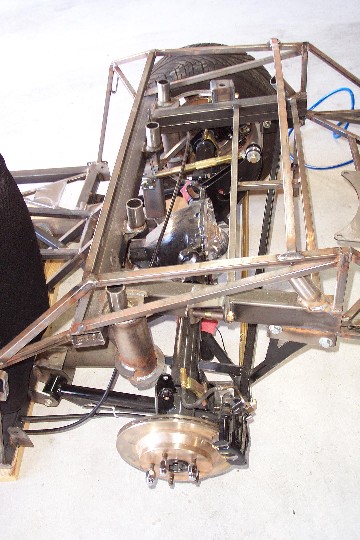

Some of the most extensive modifications to this car will be to the brake system. I will use power brakes, rear discs, five lug rotors and the emergency brake will be on the drivers side. |
|||
|

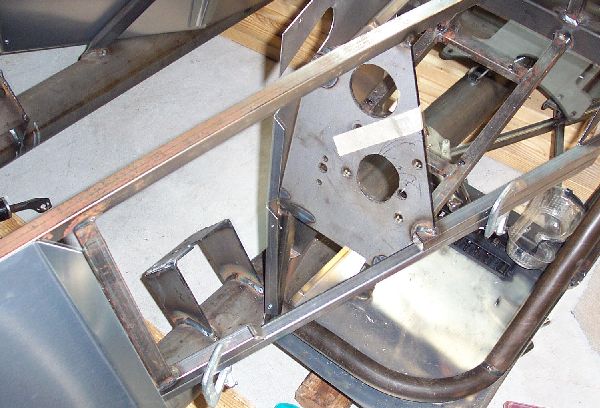

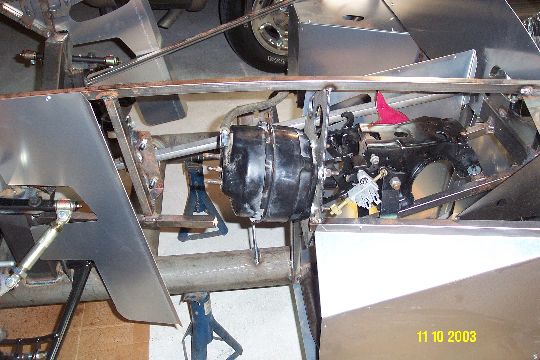

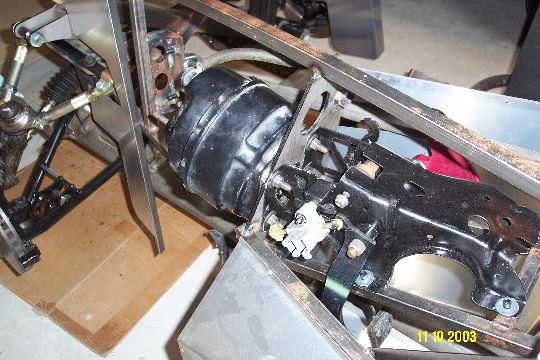

In order to fit the brake booster, part of the frame had to be cut and relocated. |
|
|
|

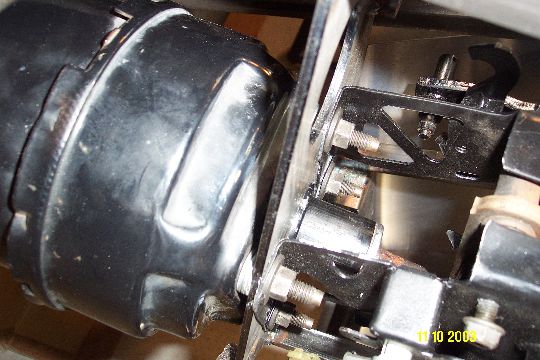

| The 3/4" tubing has been braced with a piece of tubing underneath. In the finished car you won't even see it. |
|
|
|

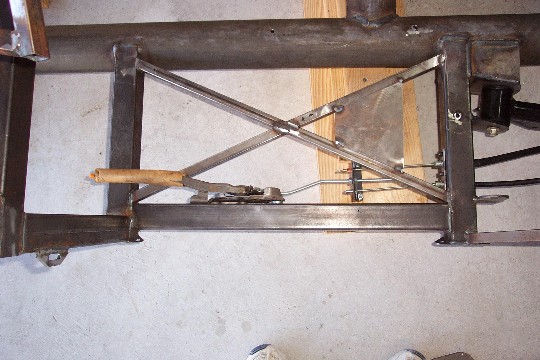

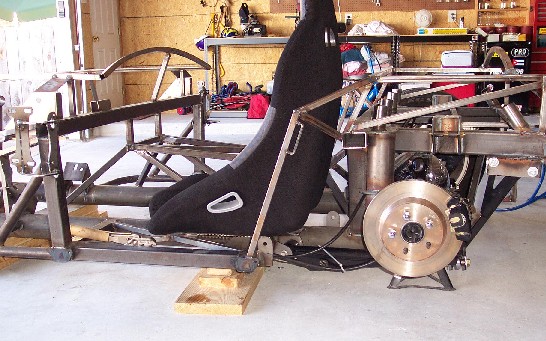

| With the wide frame tubing at the door sill the Fiero emergency brake handle is a tight fit. |
|
|
|

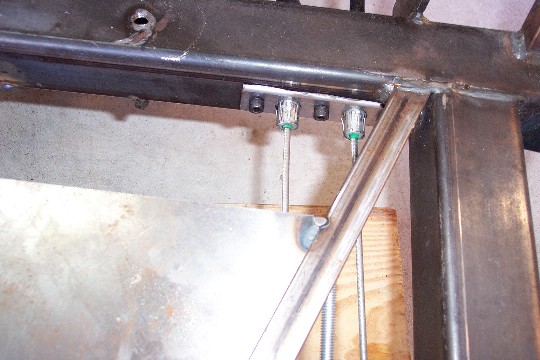

| In order to make this work I had to fabricate brackets and modify brake cables. After it was completed, it worked pretty well. |  |
 |
|

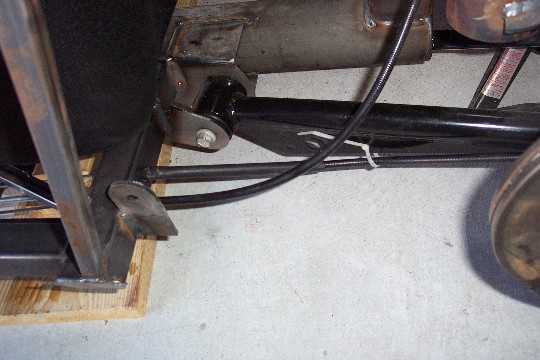

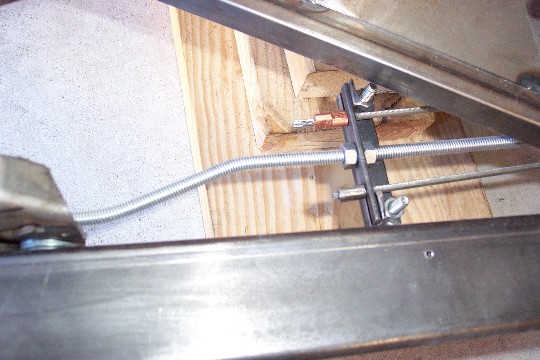

| With this installation, you end up with one very short cable and one long one for the passenger side. Don't worry the tie wrap holding the cable will be "upgraded". |
|
 |
|
| I had my helper check my work. |  |
||
